Air Source Koi Pond Heat Pump

• Advanced inverter technology.

• Achieve a higher COP and maintain a comfortable pool temperature.

• Use DC fan: quieter and lower running cost.

• Use low GWP R32 refrigerant.

• Multiple mode selection to suit different applications: Boost, Smart, Silent.

• Unique innovative design with noise-absorbing structure and components.

• Spiral threaded anti-corrosive titanium heat exchanger increases the heat transfer area for improved efficiency.

• Microprocessor controlled with digital display for " Touch & Go " : No human attendance required.

• Thick galvanized and superior static coating cabinet or anti-UV ABS plastics providing stronger corrosion resistance.

• Comprehensive self-protections: safe to use.

• Self-diagnosis: displaying error code on the control panel.

• PIug and play installation and operation.

• Remote control with WIFI APP.

• Patented design.

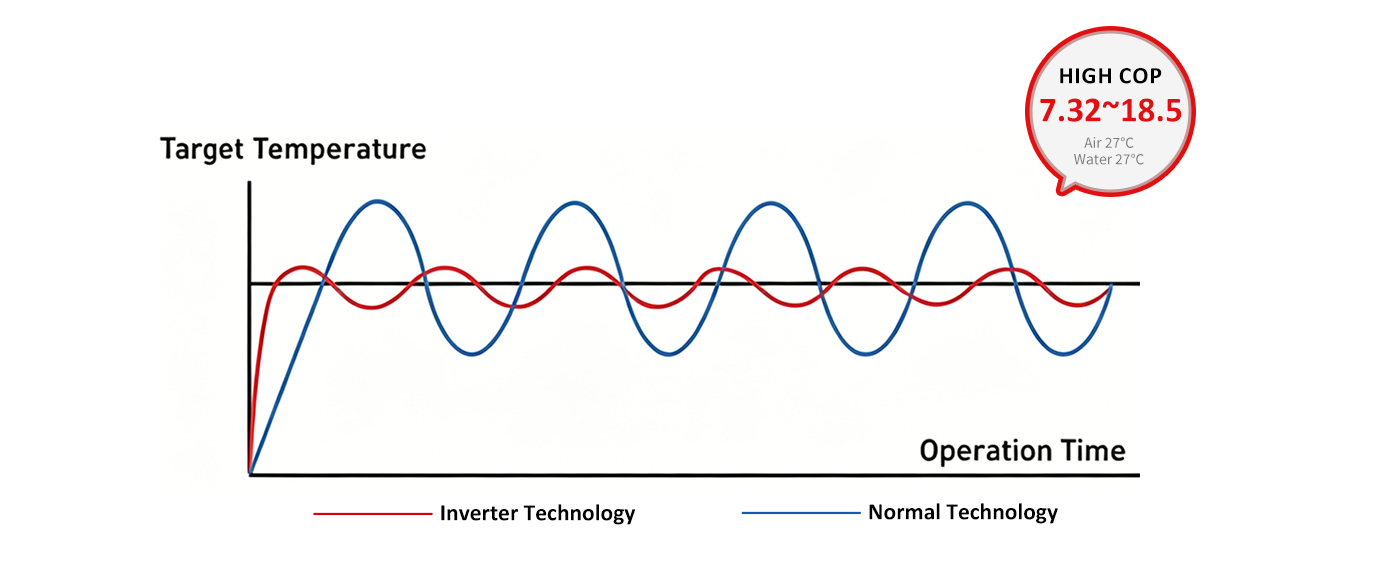

Advanced Mature Full-Inverter Heating Technology

The synergistic application of upgraded compressors and precision inverter technology empowers the unit with industry-leading operational performance. It greatly elevates overall energy efficiency, delivers ultra-stable precise temperature regulation, sustains consistently high COP ratings, and brings remarkable long-term energy cost savings for pool owners.

Industry-Leading Ultra-High COP Up To 18.5

Under standard working condition (27°C ambient air / 27°C pool water / 80% humidity), our R32 inverter heat pump reaches peak COP up to 18.5. It keeps excellent energy-saving performance in full load range, far surpassing traditional on/off fixed-frequency pool heat pumps.

Air Source Koi Pond Heat Pump

Dual Intelligent Control: Smart App + HD Touch Screen

Smart Life App Remote Management: Support Wi-Fi/4G/5G network, realize anytime & anywhere temperature adjustment, real-time operation monitoring, scheduled operation, fault abnormal alarm & energy consumption statistics. Fully compatible with iOS & Android devices.

High-definition Humanized Touch Panel: Smartphone-like easy operation, supports global remote control, OTA online firmware upgrade, timed silent mode, effectively reduces engineer on-site maintenance service costs.

Air Source Koi Pond Heat Pump

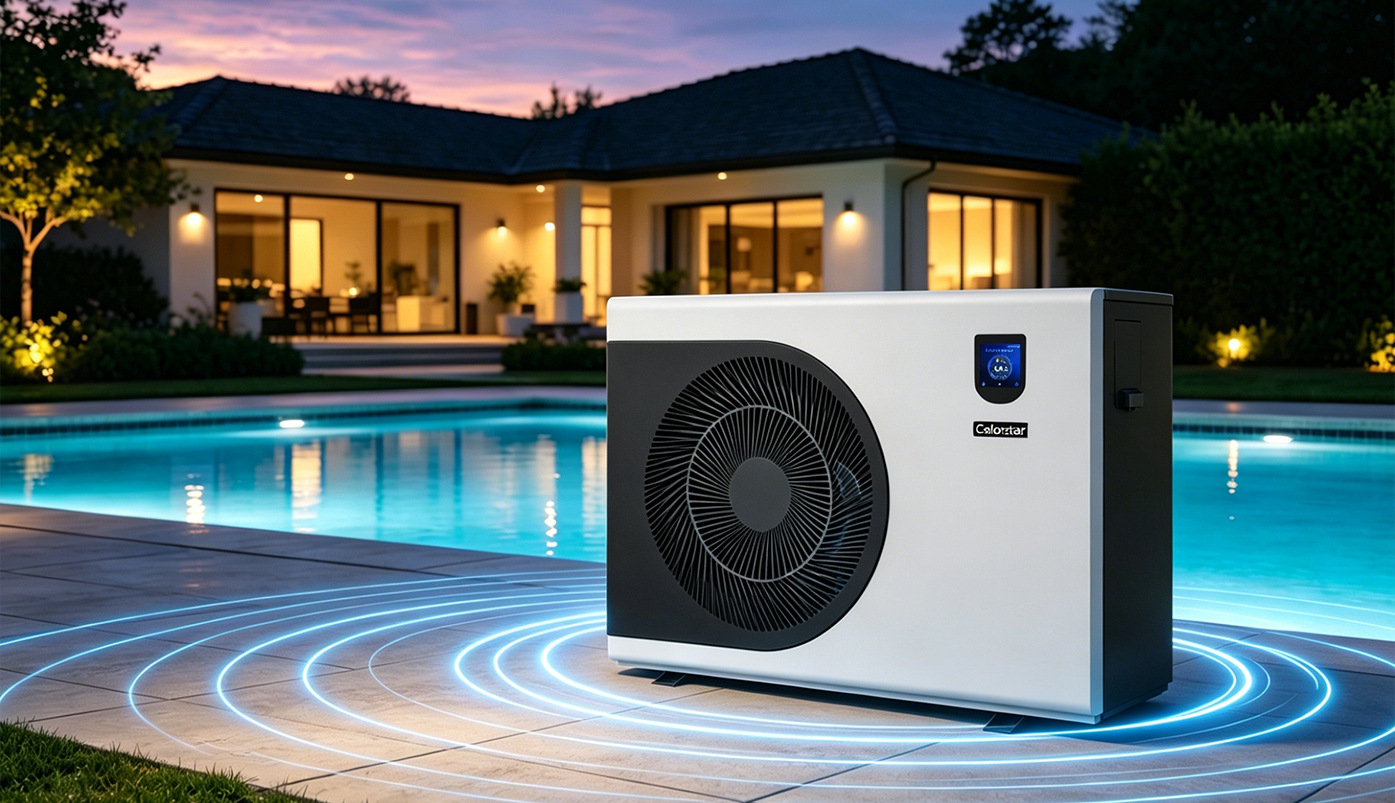

Ultra-Quiet Low Noise Operation, Only 29dB(A) At 1 Meter

Custom fully enclosed sound-insulating sealed cabinet for compressor, fully blocks and isolates running noise. The unit noise is quieter than rustling leaves, household refrigerators and daily conversation, creating quiet undisturbed living environment for villas & residential yards.

Air Source Koi Pond Heat Pump

Eco-Sustainable Low-GWP R32 Green Refrigerant

Compared with conventional refrigerants, R32 reduces global warming potential (GWP) by two-thirds. It has 32% lower GWP than R410A refrigerant, and cuts overall carbon emission consumption by 25%. Fully compliant with global HVAC green environmental protection regulations and sustainable development standards.

Heavy-Duty Anti-Corrosion & Long Service Life

Whole machine cabinet and key internal parts adopt professional anti-rust & anti-corrosion coating treatment. Perfectly adapt to saltwater swimming pools, high-humidity coastal corrosive environments, resist aging and corrosion, greatly extend equipment service life.

Model		CASBP50RC	CASBP70RC	CASBP90RC	CASBP120RC	CASBP180RC
Air27℃/Water27℃ Humid.80%	Capacity(kW)	9.03	12.02	15.25	19.21	27.28
Air27℃/Water27℃ Humid.80%	COP range	6.30~17.5	6.55~18.2	7.32~18.5	6.53~18.2	6.2~15
Air15℃/Water 26℃ Humid.70%	Capacity(kW)	5.94	7.54	10.85	13.61	19.71
Air15℃/Water 26℃ Humid.70%	COP range	5.1~8.2	5.17~8.2	5.2~8.5	5.01~8.1	4.61~8.0
Working ambienttemperature	℃	-10~43
Powersupply		220V/1Ph
Maximum imput current	A	6.8	9.1	11.5	14.48	25.50
Compressor type		Inverter
Wifi connectivity		Yes
Fan		DCinverter fan
Sound pressureat 10m	dB(A)	<29	<29	<29	<30	<30
Unit net dimensions(LWH)	mm	826379552	826379552	933401657	1125470707	1125470707
Net weight	kg	35	37	47	61	66
