High Efficiency: Max COP 18.02, reduce pool energy bills significantly.
Year-Round Performance: Works reliably from -10°C to 43°C, maintaining pool temps 15–40°C.
Green R290 Refrigerant: Ultra-low GWP natural refrigerant, eco-friendly choice.
Near-Silent Operation: 21-29 dB(A) at 10m, no disturbance to your poolside.
Heavy-Duty Build: Twin-rotary compressor + IPX4 rating for long outdoor life.
Eco-friendly R290 Natural Refrigerant
Adopting low-GWP natural R290 refrigerant, this pool heat pump meets global low-carbon standards with zero harmful greenhouse impact. Combined with full DC inverter design, its maximum COP hits up to 18.02, drastically cutting pool heating electricity cost. It balances environmental protection and energy-saving efficiency perfectly for residential pool projects.
Full DC Inverter for All-Season Stable Performance
Fitted with twin-rotary compressor and full DC inverter configuration, the unit reliably runs at ambient temperatures between -10℃ and 43℃. It delivers heating range of 15~40℃ and cooling range of 2~28℃, keeping pool water at preset constant temperature in freezing winter or sweltering summer for year-round swimming.
Touch Screen & WiFi Intelligent Control System
Equipped with intuitive touchscreen onboard controller plus built-in smart WiFi module. Users can adjust target water temperature, switch working modes and monitor running status locally or remotely via smart devices, enabling convenient unattended management of pool heating anytime anywhere.

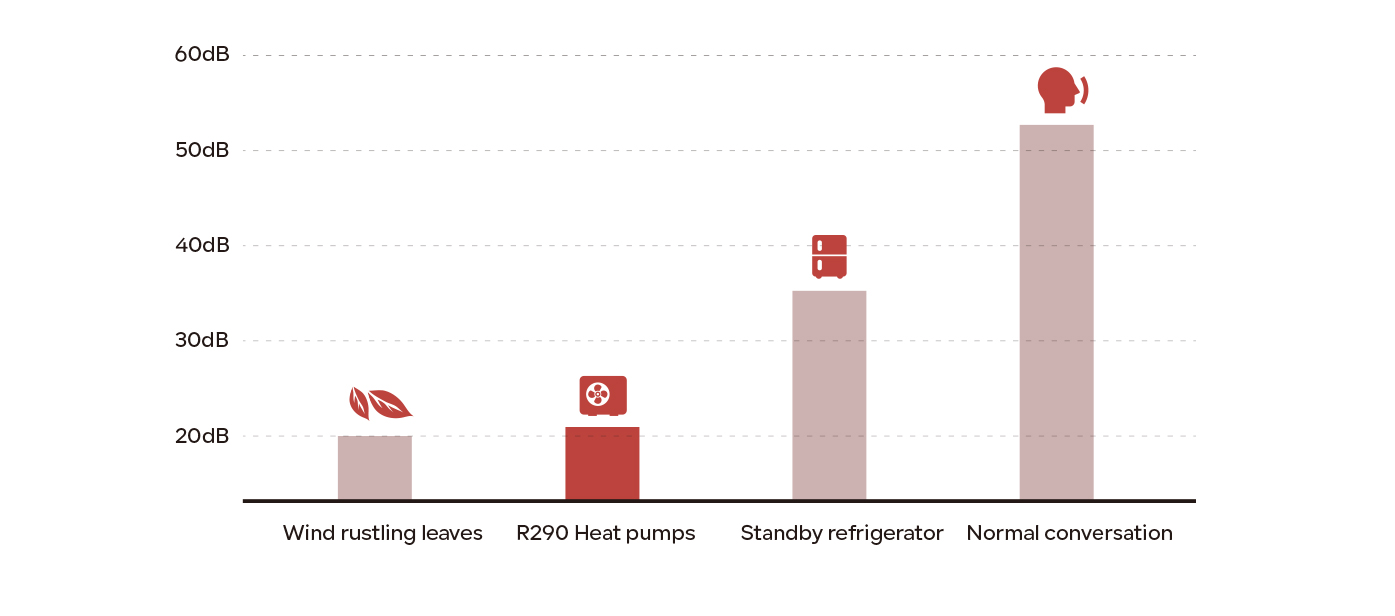

Ultra-Low Noise Quiet Operation
Optimized structure ensures only 21–29dB(A) noise at 10m, causing no disturbance to courtyard life. IPX4 waterproof rating allows durable outdoor installation under rainy or snowy conditions.
Diversified Model Options for Various Pools
Five available models suit pool volumes from 30m³ to 130m³ with graded heating capacity from 8.2kW to 26kW. Uniform 220V power input plus compact lightweight body facilitates easy transportation and installation, covering from small villa pools to medium-sized courtyard pools.
| Model | CASBP50R9C | CASBP70R9C | CASBP120R9C | CASBP150R9C | CASBP200R9C | |
| Advised pool volume | m³ | 30-50 | 35-60 | 50-75 | 60-100 | 80-130 |
| Heating temperatuer range | °C | 15~40 | 15~40 | 15~40 | 15~40 | 15~40 |
| Cooling temperatuer range | °C | 2~28 | 2~28 | 8~28 | 8~28 | 8~28 |
| Operating range | °C | -10~43 | ||||
Air 26°C Water 26°C Inverter Mode | Capacity(KW) | 8.20~2.27 | 10.5~3.28 | 15.0~3.77 | 20.0~5.00 | 26.0~6.71 |
| Power input(KW) | 1.30~0.130 | 1.65~0.182 | 2.40~0.229 | 3.20~0.303 | 4.15~0.406 | |
| Input current(A) | 5.77~0.58 | 7.32~0.81 | 4.08~0.39 | 5.43~0.52 | 7.05~0.69 | |
| COP | 17.46~6.31 | 18.02~6.36 | 16.46~6.25 | 16.50~6.25 | 16.53~6.27 | |
Air 15°C Water 26°C Inverter Mode | Capacity(KW) | 6.00~1.78 | 7.54~2.35 | 12.0~2.95 | 15.0~3.85 | 20.0~5.11 |
| Power input(KW) | 1.17~0.218 | 1.46~0.287 | 2.65~0.418 | 3.33~0.546 | 4.43~0.728 | |
| Input current(A) | 5.19~0.97 | 6.48~1.27 | 4.50~0.71 | 5.65~0.93 | 7.52~1.24 | |
| COP | 8.17~5.13 | 8.19~5.16 | 7.06~4.53 | 7.05~4.50 | 7.02~4.51 | |
| Air 35°C Water 27°C | Capacity(KW) | 3.50~1.52 | 5.00~2.24 | 7.00~3.82 | 9.00~4.99 | 12.0~4.93 |
| Power input(KW) | 1.01~0.21 | 1.42~0.31 | 2.31~0.77 | 3.00~1.01 | 4.00~1.05 | |
| Input current(A) | 4.48~0.93 | 6.30~1.38 | 3.92~1.31 | 5.09~1.72 | 6.79~1.79 | |
| EER | 7.24~3.47 | 7.23~3.52 | 4.96~3.03 | 4.94~3.00 | 4.70~3.00 | |
| Power supply | 220~240 50Hz/60Hz | |||||
| Max power input | KW | 1.8 | 1.8 | 3.0 | 4.0 | 4.8 |
| Max Current | A | 7.8 | 7.8 | 13.3 | 17.7 | 21.3 |
| Water flow | m³/h | 4.0 | 4.0 | 5.2 | 6.4 | 8.6 |
| Refrigerant volume | 0.20kg | 0.30kg | 0.50kg | 0.60kg | 0.70kg | |
| Min pressure/max pressure | 1.3/3.2MPa | 1.3/3.2MPa | 0.1/3.2MPa | 0.1/3.2MPa | 0.1/3.2MPa | |
| Unit net dimensions | mm | 760*337*530 | 760*337*530 | 995*450*720 | 995*450*720 | 995*450*720 |
| Package dimensions | mm | 790*350*640 | 790*350*650 | 1041*499*850 | 1041*499*850 | 1041*499*850 |
| Net weight | kg | 46 | 50 | 60 | 70 | 80 |
| Gross weight | kg | 52 | 56 | 65 | 75 | 85 |
| Noise at 1 m | dB(A) | 40~48 | 40~48 | 41~50 | 42~51 | 43~52 |
| Noise at 10m | dB(A) | 21~29 | 21~29 | 23~31 | 24~32 | 43~52 |
| Compressor brand | ||||||
| Compressor type | Twin-Rotary | |||||
| Water proof level | IPX4 | |||||
| Loss charge | (mCE) | 1.1 | ||||
